Confectioners Coating & Polishing Pans

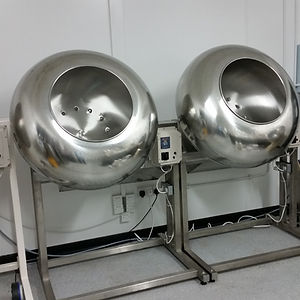

We have developed a range of superior Confectioners Coating & Polishing Pans. Strong, reliable and easily controlled by the confectioner.
Laboratory Coating & Polishing Pans

For Confectionery & Pharmaceutical requirements.
A small scale laboratory pan (Dia. of Pan 400 mm) suitable for chocolate coating / hard panning up to 2.5 kg of standard sized confectionery. (Example: Chocolate Coated Raisins).

Equipped with an IP65 inverter you can easily control the RPM. (Even at low speed).

A motor & gearbox with sufficient power to create the perfect confection.

Stainless steel or powder coated frame.

Heavy duty worm drive.

Chain driven.

Adjustable feet.



Elliptical Bowl availabe in the following Parameters:


Dia. of Pan (mm)     Depth of Pan (mm)     Dia. of Pan Mouth (mm)     Thickness of Plate (mm)

     400                          206                              210                                     1.5

     600                          320                              330                                     1.5



In-house training can be provided with each purchase.

Medium Sized Coating & Polishing Pans
Suitable for the Artisan Confectioner / Patissier
A medium sized polishing pan (Dia. of Pan 800 mm) suitable for chocolate coating & polishing / hard sugar panning.



Equipped with an IP65 Inverter you can easily control the RPM. (Evan at low speed).

A motor and gearbox with sufficient power to create the perfect confection.

Stainless steel or powder coated frame.

Heavy duty worm drive & motor

Chain drive.

Adjustable feet or castors.

Design of frame allows easy relocation.



Elliptical Bowl available in the following parameters:



Dia. of Bowl (mm)     Depth of Pan (mm)     Dia. of Pan Mouth (mm)     Thickness of Plate (mm)
     800                            406                             410                                      1.5



In house training can be provided with each purchase.



We provide well built sturdy machines demanded by the professional confectionery manufacturer,



Standard Coating & Polishing Pans
Professional Confectioner Coating & Polishing Pans
Large coating / polishing pan (Dia. of Pan 1000 mm) suitable for chocolate coating & polishing / hard sugar panning.

Equipped with an IP65 inverter you can easily control the RPM. (Evan at low speed).
A motor and gearbox with sufficient power to create the perfect confection.
Stainless steel or powder coated frame.
Heavy duty worm drive & motor.
Chain drive.
Adjustable feet or castors.
Design of frame allows easy relocation.

Elliptical bowl available in the following parameters:

Dia. of Bowl (mm)     Depth of Pan (mm)     Dia. of Pan Mouth (mm)     Thickness of Plate (mm)
    1000                           526                              520                                     1.5

In house training provided with each purchase.

We provide sturdy well built machiines as demanded by the professional confectionery manufacturer.



Recommendations



During training we are more than pleased to demonstrate methodolgy of preparing the polishing pans so that baffles are not required. Therfore the confectioner can easily remove confectionery for inspection without fear of injury to the hand and also facilitates ease of cleaning.



We also recomend the use of desiccant dryers and air conditiong systems so that standard methodolgy can be used for the production process.
